Tinker & Rasor Model T-2 CP Test Station: Cutting-Edge Corrosion Protection Testing Solution

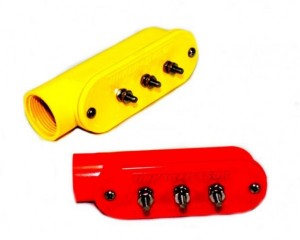

Tinker & Rasor Model T-2 CP Test Station

New from Tinker & Rasor, Models T-2 & T-4 Cathodic Protection Test Stations in the popular Condulet® style are now available from stock in 8 standard colors. Injection molded, UV protected, polycarbonate plastic body and cover for maximum strength and durability. Replaces E-27® and E-37® metal style boxes. Molded-in threaded brass inserts eliminate hard to handle “clips” and allows fast and repeated re-entry. The wrap-over cover design, combined with our optional reusable gasket, effectively seals out dirt and moisture.

The Model T-2 fits existing NPT threaded 3/4" OD riser pipe, and the Model T-4 fits existing NPT threaded 1" OD riser pipe.

The test stations include three (3) external binding posts standard. The posts are set on one inch centers to accommodate accessories such as bonding posts or banana plugs.

Both are made of a tough plastic resin material resistant to fire, UV exposure and impacts.

Features:

• Fits 3/4" Riser pipe
• 3+ hole terminal board
• 3 binding posts
• External terminals
• 7 colors from stock
• UV Stabilized color protection
• High impact resistance
• Fire resistant
• Gasket seal to protect inside
