Simulate Automotive Solutions: Tinker & Rasor CS-1 Magnesium Anode Simulator

Simulate Automotive Solutions: Tinker & Rasor CS-1 Magnesium Anode Simulator

Regular price $451.25 USD
Regular price Sale price $451.25 USD
Sale Sold out
Shipping calculated at checkout.

55 in stock

Product Description

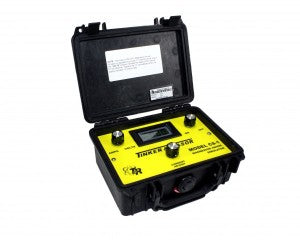

Tinker & Rasor Model CS-1 Magnesium Anode Simulator

The Model CS-1 is a portable, adjustable current supply capable of delivering up to 1.5 amps of DC current depending on load conditions. The output voltage is fixed at 1.7 volts DC making the CS-1 ideal for use as a magnesium anode simulator. The CS-1 has a digital display to show the amount of current impressed and to check the internal DC battery level.

For convenience in the field, the CS-1 Mag Anode Simulator uses 4 replaceable “D” cell batteries to provide current and a replaceable 9 volt battery for the meter display. For best performance Tinker & Rasor recommends the use of alkaline batteries.

Use:
Use CS-1 to simulate one Mag. anode in an unprotected area to measure pipe to soil potential levels. Determine size and number of mag. anodes required in a given location for protection.

Features:
  • 1.7 Amps adjustable output
  • LCD Display Shows Amps and Voltage
  • 1 milliamp resolution
  • Simulates a standard Mag. Anode
  • Internal replacement battery
  • Provides "What If" on pipeline
  • MIL-SPEC Instrument case
  • Adjustable Current
The CS-1 portable Magnesium Anode Simulator is an ideal DC current source that will allow the user to see what the addition of a magnesium anode on their system will do to Pipe to Soil measurements and other C.P. tests.
