Tinker & Rasor Model AG-1 AT-Grade CP Test Station - Dalf-Point

Tinker & Rasor Model AG-1 AT-Grade CP Test Station

Tinker & Rasor | UPC #: AG-1 | MFR #:

: In stock

: Meter

Price: $52.25
/Each
Title: Default Title
Catalog Spec Sheet: Here

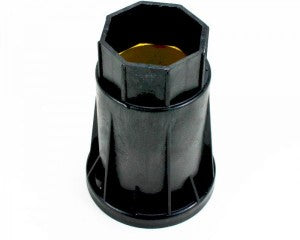

Tinker & Rasor Model AG-1 AT-Grade CP Test Station

Manufactured by Tinker & Rasor, these convenient at-grade CP Test Stations are ideal for quick access by field personnel when monitoring electrical currents and potentials on buried pipelines, cables or other metallic structures.

These test stations have been designed for use in low traffic areas, such as tank farms, sidewalks, etc.

The single body, Bell shape design, offers protection from ground water coming into contact with terminal board.

The terminal board has eleven (11) holes which are numbered, most separated on 1" centers to allow for accessories, such as shunts and bonding straps. The terminal comes with four (4) rapid connect binding posts.

Available from stock with Black color bodies. Housing available in Black, Orange or Yellow. Additional custom colors also available.

Features:
  • 1/4 turn locking device
  • Magnet for locating
  • Easily located with Detectron 7-T valve box locator
  • 11 position terminal board
  • AG-1 with 1 piece bell shape insert keeps terminal board dry, even when submerged.
